    Your current location :Home / Products / Drying equipment series / ZS centrifugal vibrating screen

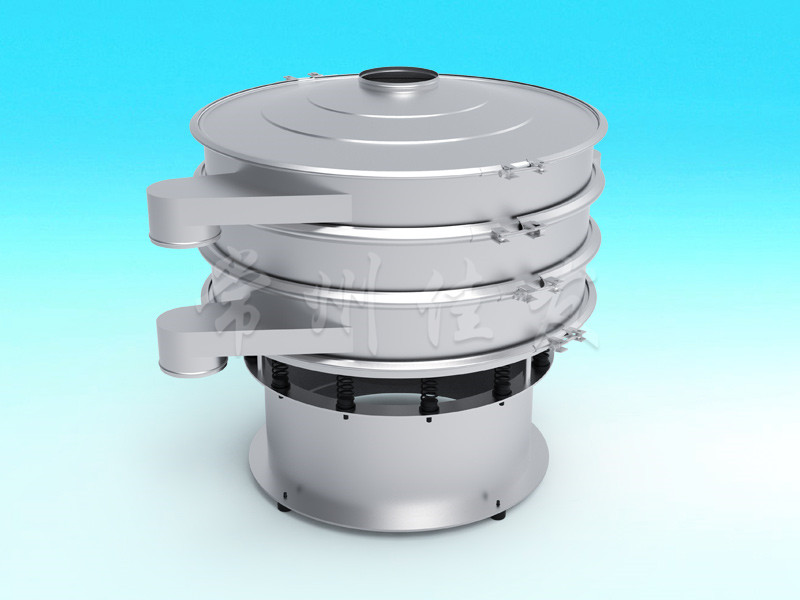

    ZS centrifugal vibrating screen
    This machine is composed of a hopper, an oscillation chamber, a coupling, and a motor. The oscillation chamber consists of eccentric wheels, rubber software, main shafts, bearings, etc. The adjustable eccentric weight is driven by a motor to reach the centerline of the main shaft, generating centrifugal force in an unbalanced state, causing changes in material strength and forming track vortices inside the screen. The amplitude of the heavy hammer adjuster can be adjusted according to different materials and screens. The entire machine has a compact structure, small size, no dust, low noise, high quality, low energy consumption, and convenient mobile maintenance.
    13606122988
    Details

    Equipment characteristics

      The ZS series layered sieve is suitable for flow operations and is an ideal equipment for continuous discharge of materials with varying proportions of coarse and fine particles.


    Parameters

    Project specifications

    ZS-350

    ZS-515

    ZS-650

    ZS-800

    ZS-1000

    ZS-1200

    Production capacity(kg/h)

    50-300

    100-500

    150-800

    180-1000

    200-1800

    250-2000

    Meshes(mesh)

    12-80

    12-80

    12-80

    12-80

    12-80

    12-80

    Power(kw)

    0.55

    0.75

    1.1

    0.75

    1.1

    1.5

    Spindle speed(rpm)

    1380

    1370

    1370

    1500

    1500

    1500

    Overall dimensions(mm)

    540×540×1060

    710×710×1290

    880×880×1350

    900×900×1200

    1100×1100×1200

    1300×1300×1200

    Net weight(kg)

    100

    180

    250

    300

    400

    500

    All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

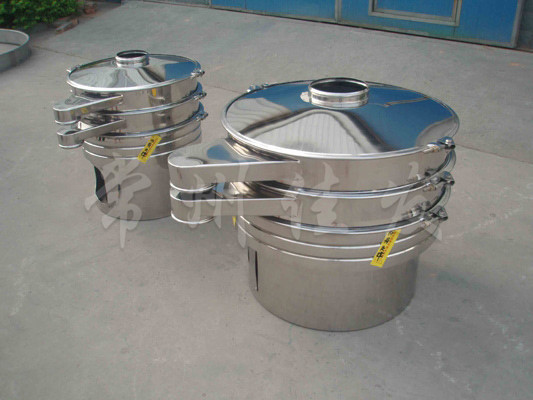

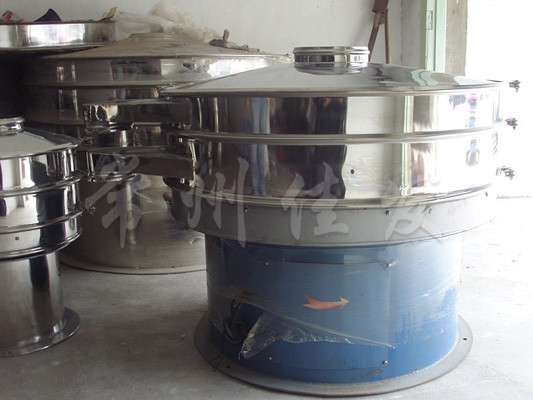

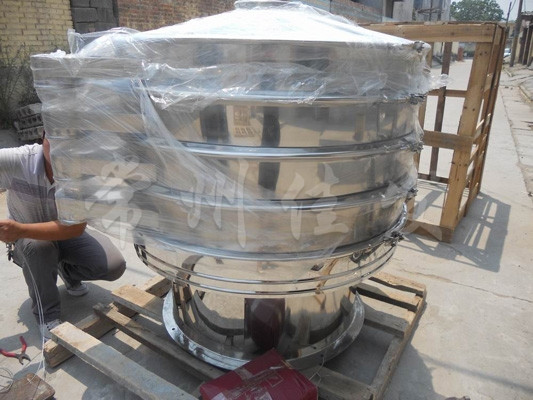

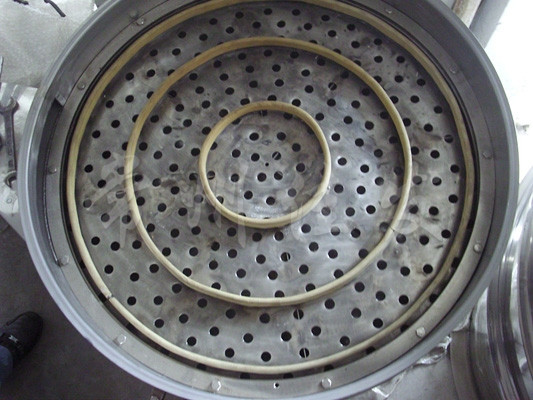

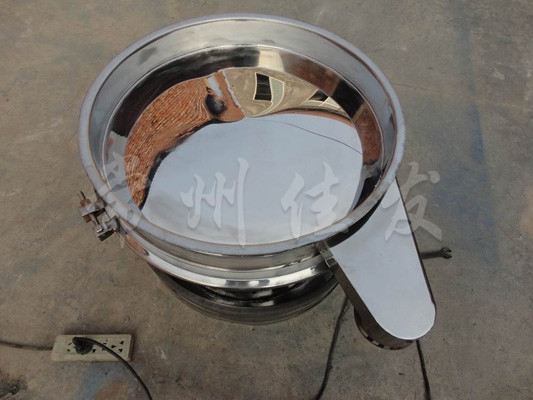

    Photos
