Summary
★ This machine adopts a large area sandwich heating method, with a large heat transfer surface and high thermal efficiency.
★ This machine is equipped with stirring to form a continuous circulation of materials in the barrel, further improving the uniformity of material heating.
★ This machine is equipped with stirring to smoothly dry slurry, paste, and paste materials.
Principle

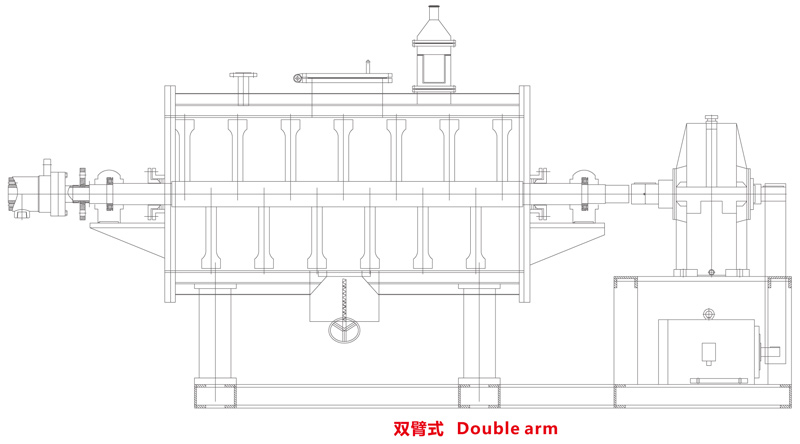

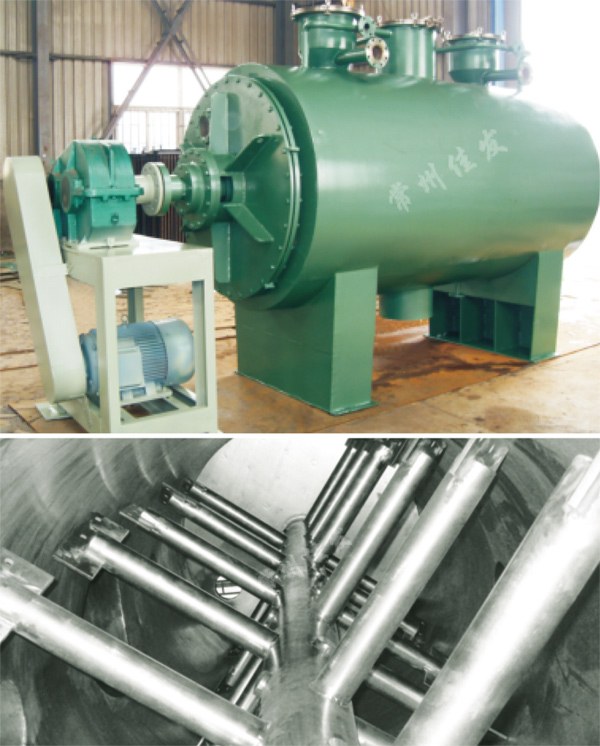

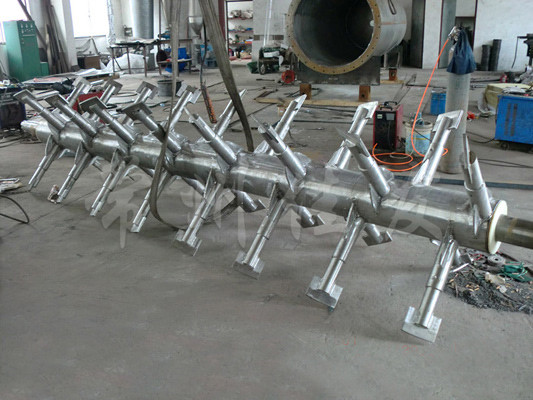

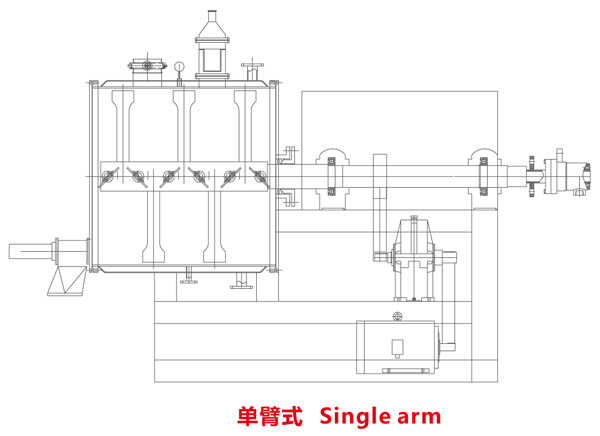

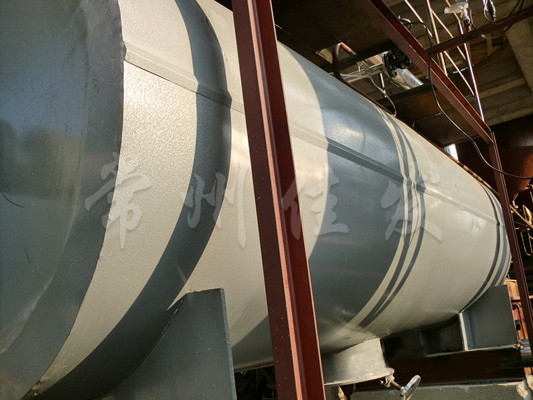

This machine is a new type of horizontal intermittent vacuum drying equipment. Wet materials are evaporated through conduction, and a scraper mixer is equipped to continuously remove the materials on the hot surface. The material is then pushed inside the container to form a circulating flow. After the water evaporates, it is pumped out by a vacuum pump.
Application
★ Drying of the following materials in pharmaceutical, food, chemical and other industries
★ Suitable for paste, paste, and powder materials.
★ Heat sensitive materials that require low-temperature drying.
★ Easy to oxidize, explosive, highly irritating, and highly toxic materials.
★ Require the recovery of organic solvent materials.
Model | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 | ZPG-5000 | |
Working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 | 5000 |
Inner cylinder size | mm | ?600×1500 | ?800×1500 | ?800×2000 | ?1000×2000 | ?1000×2600 | ?1200×2600 | ?1400×3400 |
Stirring speed | rpm | 6~30 stepless speed regulation | ||||||
Power | Kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 | 22 |
Design pressure of interlayer | MPa | ≤0.3 | ||||||
Pressure inside the cylinder | MPa | -0.096~0.15 | ||||||
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
